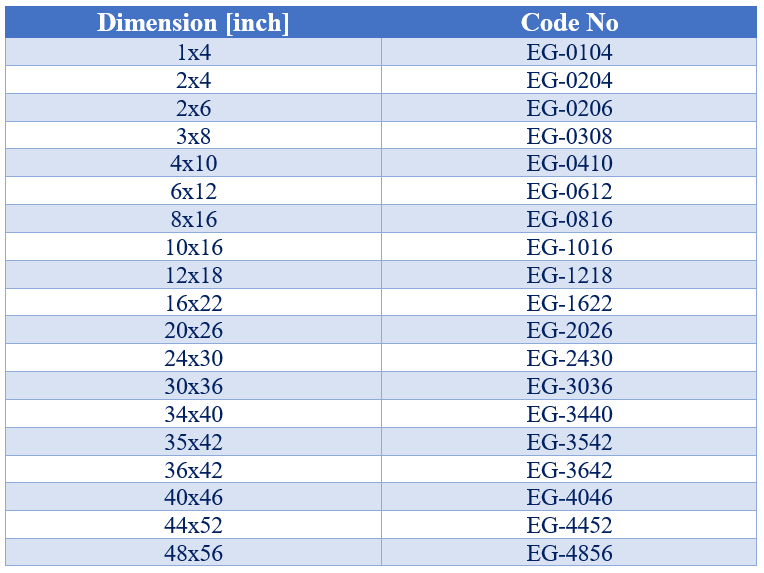

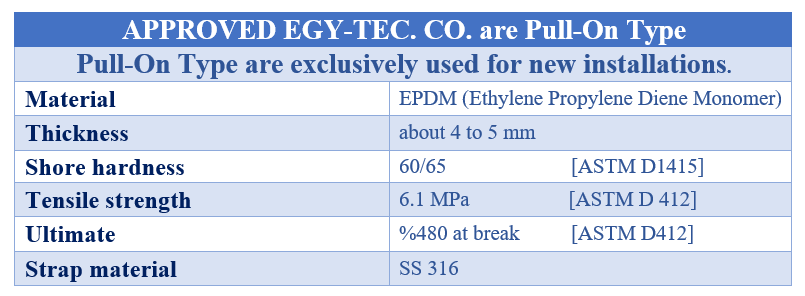

Model TYPE:

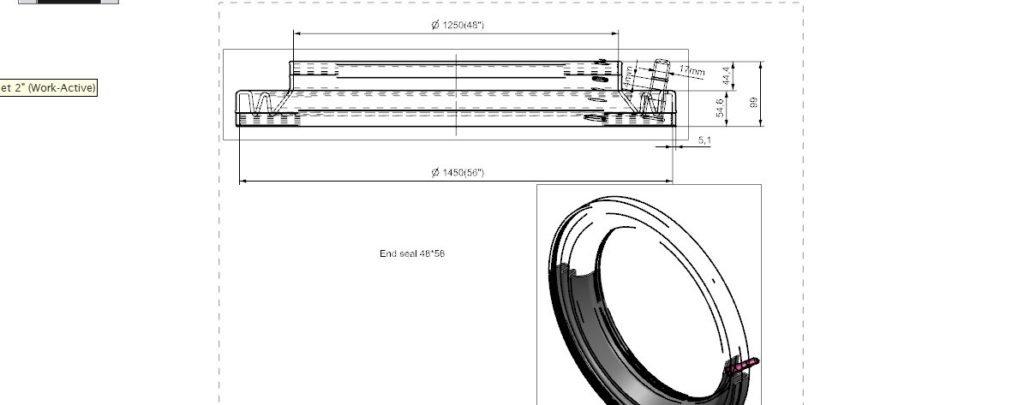

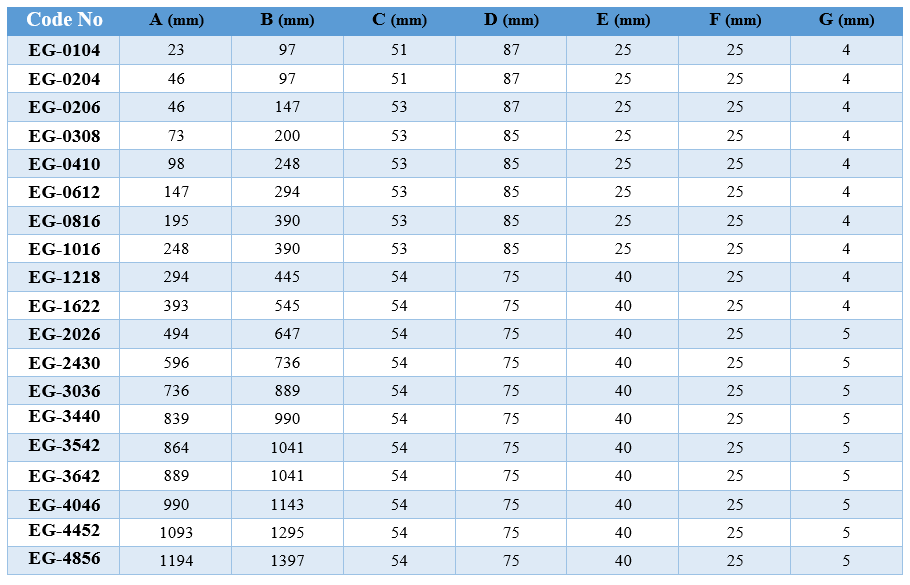

Model Samples:

•

•

•

•

End Seal Order Form:

INSTALLATION GUIDE:

null
• Prepare outside surfaces by removing dirt from casing
  and carrier pipe.

• After carrier pipe is inserted into casing, slide
  small end of end seal over the carrier pipe with stainless steel banding clamp.
  Large end should face casing.

• Position large end of
  end seal over the casing pipe.

• Position banding clamp approximately 1″ from the end
  of the casing pipe and then tighten onto the end seal.

• Position banding clamp approximately 1″ from the end
  of the end seal on the carrier pipe and then tighten.

Casing End Seal with Nozzles (Optional):

• APPROVED EGY-TEC. CO. Can providing customized nozzles

  for our casing end seal as per client requirement.
• For special order
  please specify No. of nozzles, nozzles size
  and casing end seal size.
